间隔时间为1秒的双快门图像
电荷级的全局快门
高分辨率5120 x 5120像素
防尘机体
曝光时间350ms到6s
像素尺寸2.5 µmx 2.5 µm
动态范围66 dB
紧凑的外形设计
帧率6 fps @ 26兆像素(单快门模式)
高达百分之65的量子效率
USB 3.1使用1代数据接口
传单 接触

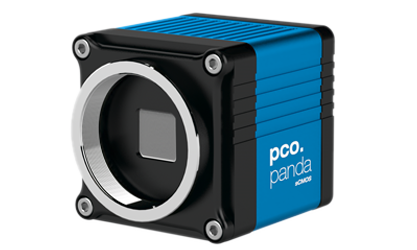

With the pco.panda 26 DS sCMOS camera you get a high resolution, ultra-compact sCMOS camera for particle image velocimetry (PIV) applications.

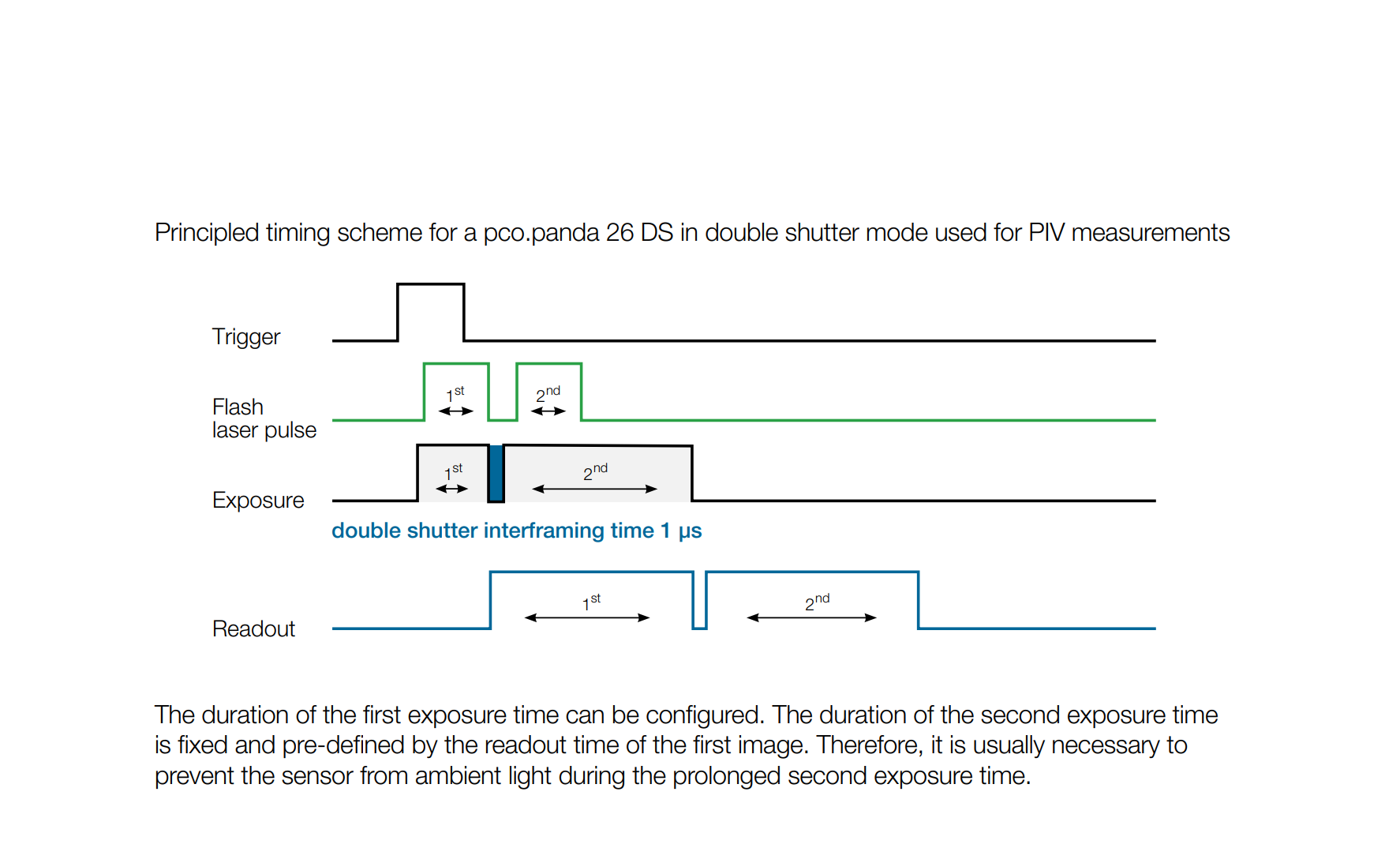

The outstanding global shutter capabilities of the pco.panda 26 sCMOS sensor make it a perfect candidate for effective double imaging – a prerequisite to perform all types of Particle Image Velocimetry measurements in flow analysis. In PIV, light scattering particles are added to the flow under test. A laser beam is formed into a light sheet, illuminating the scattering particles twice with a short pulse at a time interval Δt. The lower limit for this time interval is defined by the double shutter interframing time of the camera. The scattered light is recorded onto two consecutive frames of a high resolution digital camera.
The shorter the double shutter interframing time, the higher the flow speeds which can be analyzed. There are many details that make the pco.panda 26 DS sCMOS camera outstanding. Its small 2.5 x 2.5 µm² pixels are an excellent fit to use the resolution capacity in optical systems. Thanks to the pco.panda 26's DS true charge domain global shutter, you can achieve a remarkably low readout noise and dark current. In addition, the pixel architecture allows to acquire double shutter images, with an interframing time of only 1 µs.
The housing design and interface provide easy integration. All pco.panda cameras have ultra-compact dimensions. The lack of needing an external power supply allows power and fast data transfer through one single USB 3.1 Gen 1 cable.
